Distributed Output Level (Gain) : 4.0 dB typical, 1.0 dB to 5.0 dB from antenna input (Output ports 1–4). / 0.5 dB typical, –1.5 dB to 2.4 dB from antenna input (Cascade port)
Output Connector Isolation : Greater than 25 dB
Third Order Intercept Point (3 OIP) : Typical 24 dBm
Input/Output AC Line Voltage : 100 to 240 Vac, 50/60 Hz, unswitched
DC Output Voltage : 12 Vdc, 4 connectors
Maximun Current Supply from DC Outputs : 1.1 Amps
Impedance : 50 Ω
Operating Temperature Range : –7° C (+20° F) to 49° C (+120° F)
Overall Dimensions : 44.5 mm high x 482.6 mm wide x 295.3 mm deep
Net Weight : 3.32 Kg (7 lbs, 5 oz)
Input/Output Antenna Connector Type :BNC-type
AC Power Consumption : 15 W per unit typical.
Certification : LISTED by UL and CUL (U.S. and Canada), IC and FCC; IC Certified (Canada). Meets applicable European directives for CE marking eligibility. Meets Requirements of EMC. Standard and 301 489 Parts 1 and 9. Meets the essential requirements of the European R&TTE Directive 99/5/EC and are eligible to carry the CE marking
UA870
Courbe de réponse RF
UA870A 782 à 810 MHz
UA870KK 838 à 862 MHz
UA870MB 800 à 830 MHz
UA870MC 774 à 782 MHz
UA870UB 692 à 716 MHz
UA870WB 470 à 900 MHz
UA870USTV 470 à 698 MHz
UA870X 944 à 952 MHz
Source d’alimentation
12 V cc à distance du raccordement de câble coaxial au récepteur ou au
répartiteur
Consommation de courant
UA870 (A, KK, MB, MC, UB, X): 0,81 W (12 V cc)
UA870 (WB, USTV): 0,68 W (12 V cc)
Gain d’antenne
7 dB typique (sur l’axe)
Gain d’amplifi cateur
UA870 (A, KK, MB, MC, UB, X): Sélecteur de gain à 3 dB : 3 dB ± 2 dB
Sélecteur de gain à 10 dB : 10 dB ± 2 dB
UA870 (WB, USTV): Sélecteur de gain à 3 dB : (–2 dB, +1,5 dB)
Sélecteur de gain à 10 dB : (–1 dB, + 3,0 dB)
Point d’interception de troisième ordre : (3OIP) à la sortie Plus de 30 dBm
Configuration : Directionnelle, cardioïde
Largeur de faisceau à 3 dB : 100 degrés
Témoins DEL de gain d’amplifi cateur : 3 dB : DEL verte / 10 dB : DEL rouge
Connecteur : Femelle, type BNC
Adaptateur articulé : Action directe, résistant aux chocs, réglable de 0 à 90 degrés avec filetage
standard 5/8 po -27
Galerie photos
Propriétés techniques
Dimensions du flight-case: 54 x 54 x 17 cm

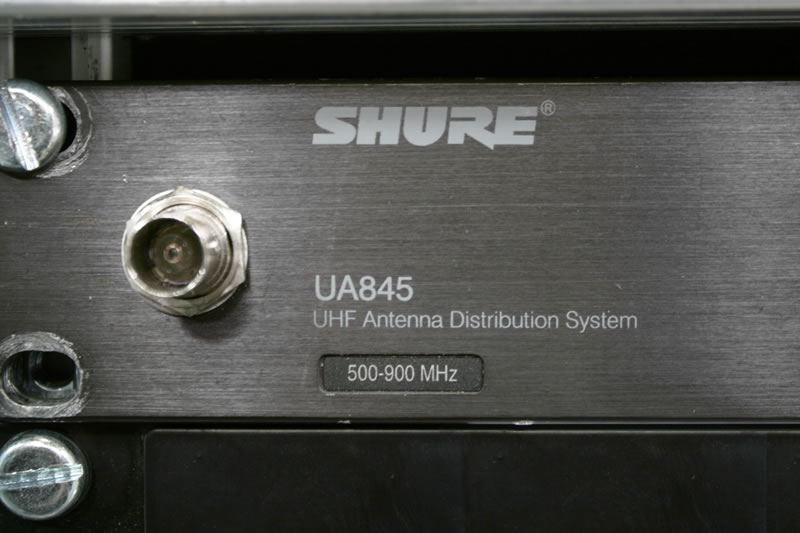

Dimensions unitaires: 44,5 x 482,6 x 295,3 mm (UA845)
Dimensions unitaires: 316,2 x 359,4 x 35,5 mm (UA870)
